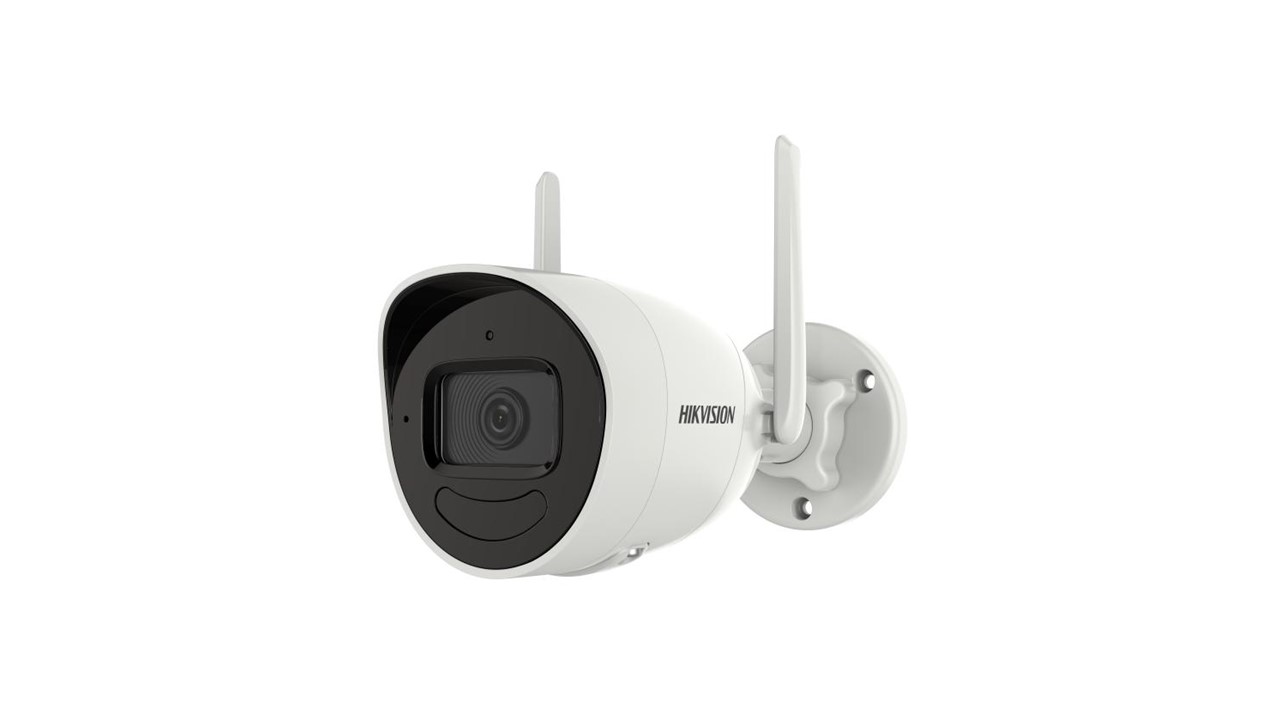

Cámara Hikvision Outdoor Audio Fixed Bullet Network 2 MP

Description

Lente
LenteFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133°

4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 110°
AperturaF1.6
Iris TypeFixed
Montura del lenteM12
Depth of Field
2.8 mm: 1 m to ∞

4 mm: 1.1 m to ∞

DORI
DORI
2.8 mm, D: 42 m, O: 17 m, R: 9 m, I: 4 m

4 mm, D: 52 m, O: 21 m, R: 11 m, I: 5 m

Vídeo
Main stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Compresión de video
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile

Audio
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC);64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user
Cliente
Wired network: Hik-Connect, iVMS-4200

Wi-Fi: iVMS-4200

*Wi-Fi connection with Hik-Connect directly is not possible.
Navegador web
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi
Ratio de transferencia11n: up to 300 Mbps
Protocolo de Wi-Fi802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Rango de frecuencia2.412 GHz to 2.472 GHz
Canal de ancho de banda20/40 MHz
Modulación
802.11n: BPSK, QPSK, 16QAM, and 64QAM

802.11b: DBPSK and DQPSK, CCK

802.11g: BPSK, QPSK, 16QAM, and 64QAM
Alcance inalámbrico
Up to 120 m

(The performance varies based on actual environment)
Antena2 Antennas

Imagen
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Interruptor día/nocheAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Mejora de la imagenBLC, 3D DNR

Interfaz
Micrófono incorporadoYes
Altavoz incorporadoYes
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

General
alimentación12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
IdiomaEnglish, Ukrainian
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Función generalAnti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
MaterialBase: metal, front cover: metal, back cover: plastic
Dimensión175.6 mm × 73 mm × 89.1 mm (6.9″ × 2.9″ × 3.5″)
Dimensión del paquete260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)
Approx. 345 g (0.8 lb.)
Con peso del paqueteApprox. 690 g (1.5 lb.)

Certificaciones
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

KC: KN32: 2015, KN35: 2015
RF
FCC ID (FCC Part 15.247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
Seguridad
CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtecciónIP66

PN: DS-2CV2021G2-IDW

Marca	HIKVISION
